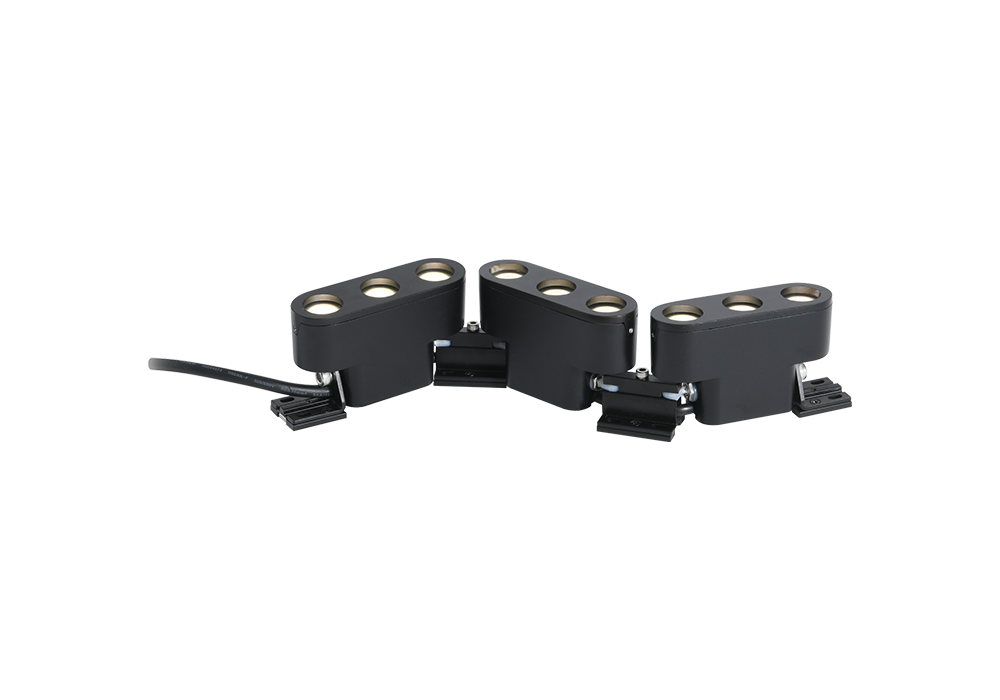

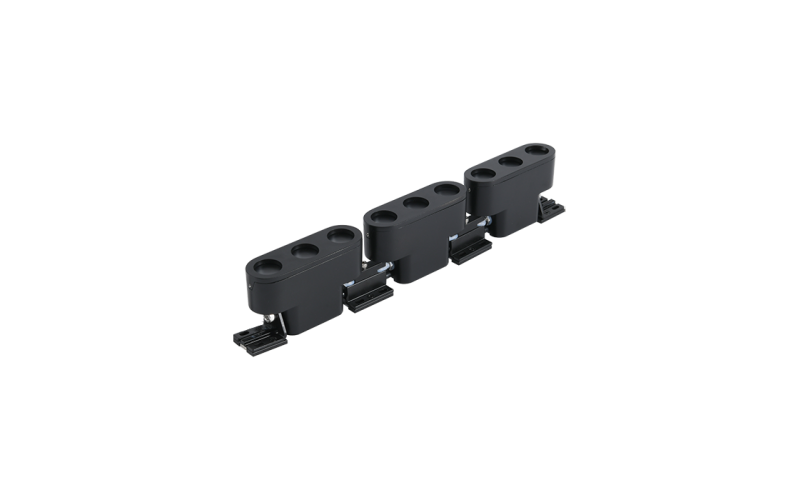

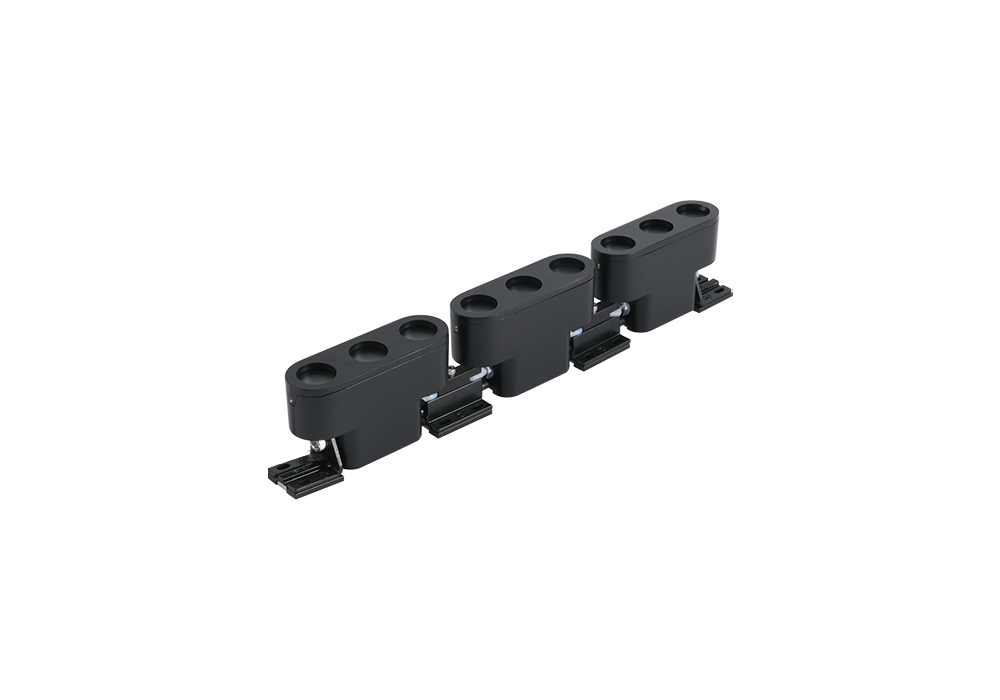

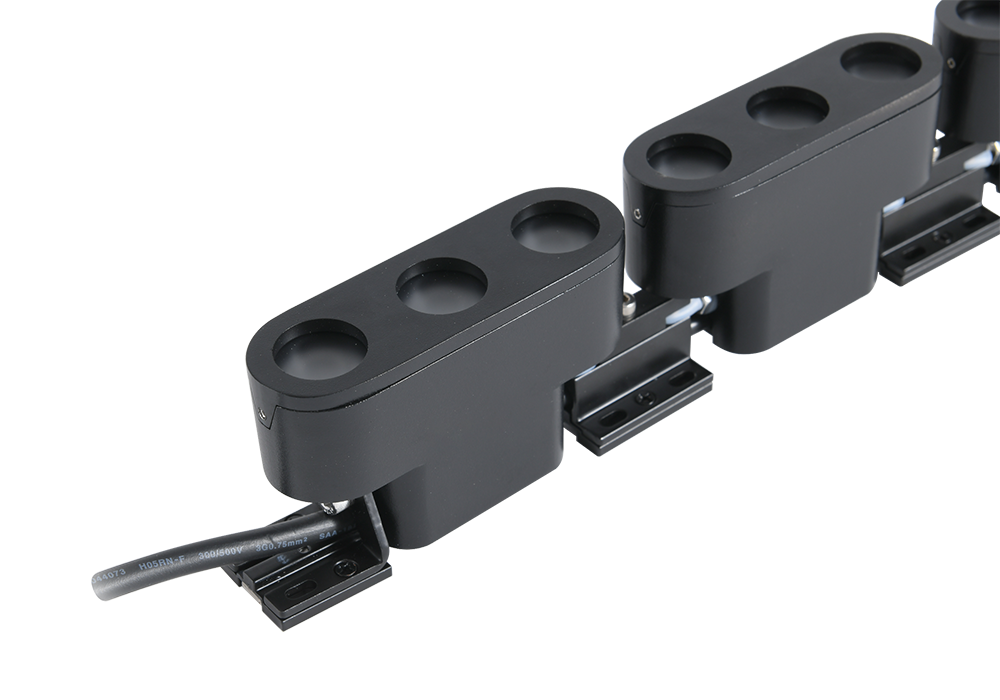

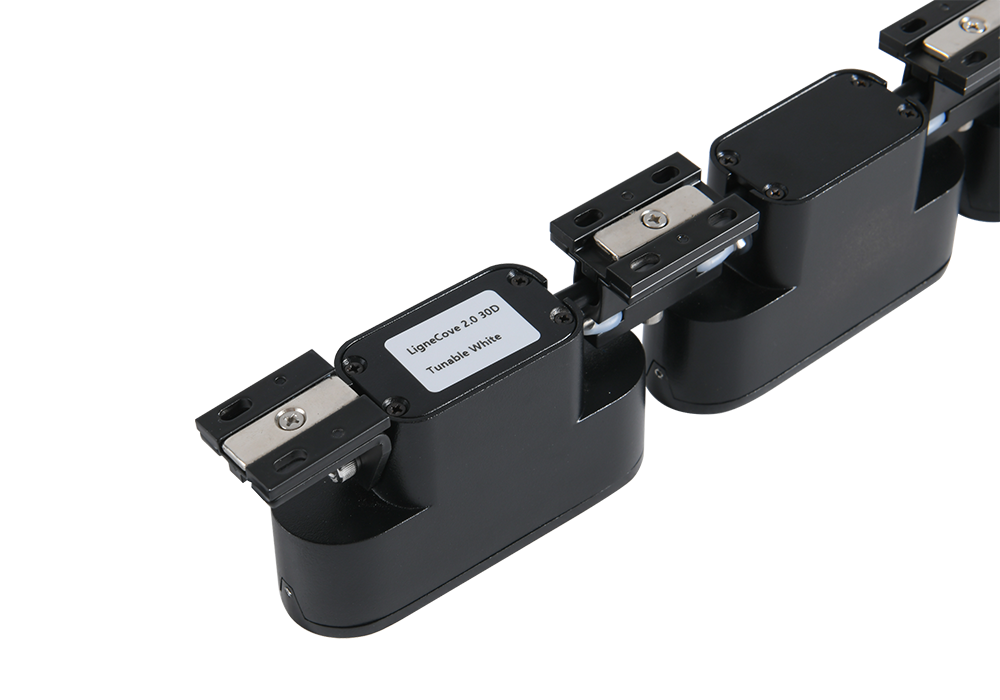

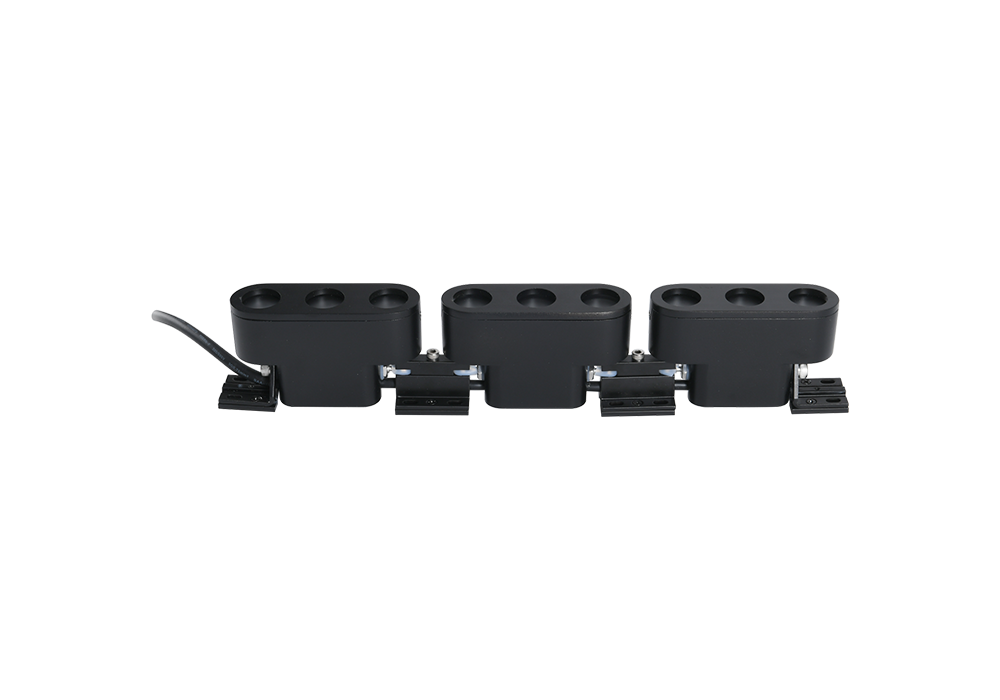

15W Modular 3D flexible LED exterior linear washer graze lighting system with both IP20 and IP54

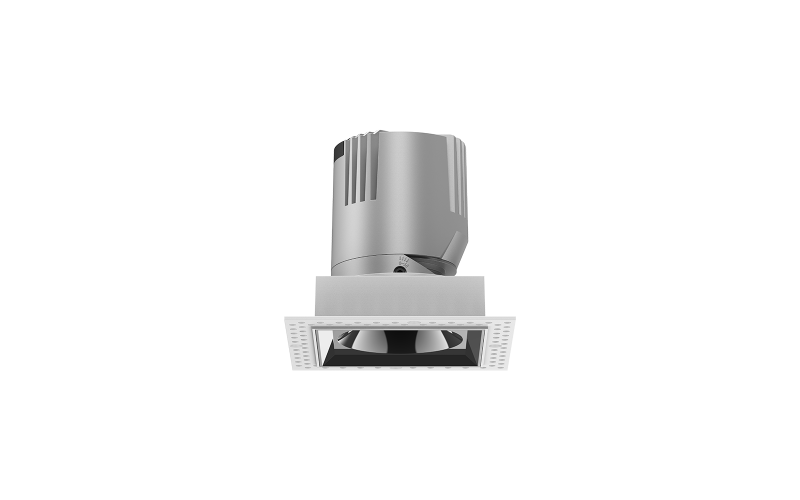

beam angle adjustable recessed up light have different sizes with different wattages, IP67 class and We also provide various models to build applications upon your design concept.

  • Data Sheet:
  • Model No: WWL-C1506
  • Input Voltage: 12V DC,24V DC
  • Beam Angle: 15°,24°,36°
  • Color Temp: 2700K,3000K,4000K,RGBW
  • Dimensions: 320*32*65(H)mm
  • Package: 1pcs/ctn
  • Certification: CE,RoHS

MODEL

WWL-C1506

OPERATING VOLTAGE

12V DC,24V DC

POWER CONSUMPTION

15W

LED TYPE

High Power LED

COLOR RANGE

2700K,3000K,4000K

CRI

90min, 80min

SYSTEM EFFICIENCY

120 lm/W@3000K

FWHM

8°/10°/15°/25°/30°/60°

MATERIAL

High purity aluminum + Tempered glass

OPERATING TEMPERATURE

-20°C ~ +55°C

STORAGE TEMPERATURE

-25°C ~ +60°C

LIFE TIME

50,000 hours/L70 at 25°C

CONNECTION

Quick-Plug (Option)

DIMENSIONS

320*32*65(H)mm

WATER PROOF

IP54

CONTROL

ON/OFF

LIST

CE & ROHS
